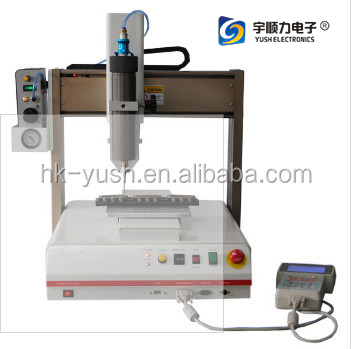

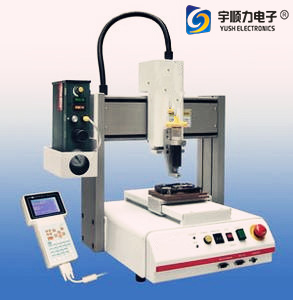

Robot Glue Dispensing Machine for iphone . Hot Melt Adhesive Dispensing Robot

Name: Robot Glue Dispensing Machine for iphone Hot Melt Adhesive Dispensing Robot
Brand: YUSH
Price: 3 USD

Buy cheap Robot Glue Dispensing Machine for iphone . Hot Melt Adhesive Dispensing Robot product

Place of Origin : Jiangsu, China

Brand Name : YUSH

Model Number : YS-S330

MOQ : 1 set

Price : $3,000-6,500 / set

Weight : 70KG

Working Area : 300*300*60 mm

Working Humidity : 20~90% no condensation

Dimensions : 485*505*610 mm

Voltage : 250W

Glue Pump Viscosity : almost all viscosity

Dispensing Head : one or more on request

Power : 220/110 V

Speed : Max. 500mm/sec

Dispensing Quantity : Min. 0.001ml

Resolution : 0.01mm

Repeatability : +/-0.01mm

Size : 460*450*480 mm

Core Components : Motor

Contact Now

Robot Glue Dispensing Machine for iPhone - Hot Melt Adhesive Dispensing Robot

High-precision automated dispensing system designed for iPhone manufacturing and other electronics applications.

Key Specifications

Compatible with silicone glue, UV glue, AB glue, and more
Easy-to-modify holder and programs
High quality construction with CE certification

Robot Glue Dispensing Machine for iphone . Hot Melt Adhesive Dispensing Robot

Compatible Adhesive Types

Silicone glue, UV glue, AB glue, EPOXY (black glue), COB black glue, white glue, EMI conductive glue, epoxy resin, instant glue, silver glue, red glue, paste, thermal grease, welding control paste, transparent paint, and more.

Application Capabilities

Can perform dot dispensing, draw lines, squares, circles, and various irregular graphics on product surfaces, exterior walls, vertical planes, and gaps.

Technical Specifications

Model	YS-S330
Power	220/110 V
Voltage	250W
Working Area (XYZ)	30030060 mm (Customizable)
Speed	Max. 500mm/sec
Dispensing Quantity	Min. 0.001ml
Resolution	0.01mm
Repeatability	+/-0.01mm
Size (LWH)	460450480 mm
Weight	70KG

Key Features

Full automatic robot with 3 or 4 axes

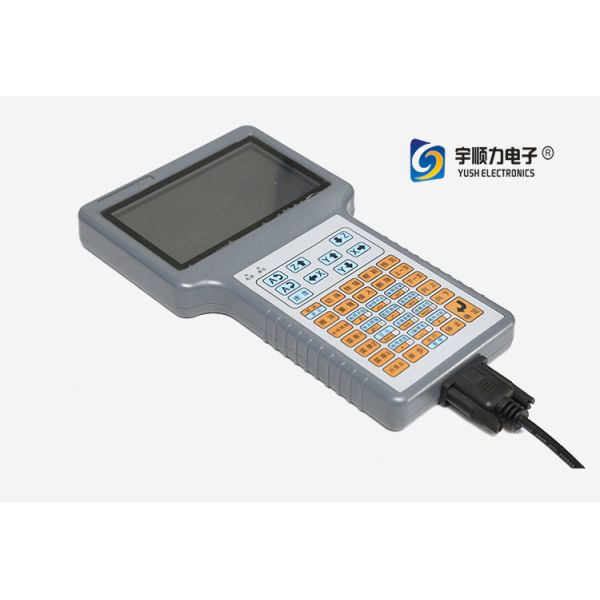

Dispensing path can be set in robot or imported from external computer
Easy operation with amendable holder and programs
Can store multiple independent running programs
High precision with well-controlled glue application
Configurable with multiple dispensing heads
Wide dispensing area for multiple product setup
Customizable working table available

Industry Applications

Electro-acoustic industry: speakers, buzzers, audio, headphones
Inductance industries: transformers, relays, small coil motors
Communications industry: mobile phone components, radios, telephones
Computers and digital products: MP3/MP4 players, electronic toys
Switches, connectors, wires, and cable assemblies
Electronics: components, circuits, solder paste, LCD screens
Optics: lenses and optical heads
Mechanical hardware and battery boxes
LED manufacturing industries
