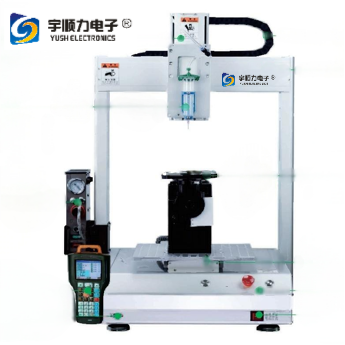

High Quality Rotary Automatic Dispensing Machine With Two-Dimensional For SMT Production Line

Brand Name : YUSH

Model Number : TZ-DJ331R/TZ-DJ5331R

Certification : CE, RUV Rheinland (China), GMC(GlobalMarket),ISO9001-2000

Place of Origin : Jiangsu

MOQ : 1 set

Price : USD 7000~12000

Payment Terms : T/T ,Paypal ,West Union ,L/C ,D/P .

Supply Ability : 100 sets/ month

Delivery Time : 3 days to 7days

Packaging Details : Plywooden case

Model : TZ-DJ331R TZ-DJ5331R

programmatically : Import teaching programming or graphics

Can movethegraphtrack : Point,line,arc,circle,curve,multiple lines,spiral,ellipse

Dispensing head : Plastic needle /TT needle

Dispensing cylinder : 3CC/5CC/10CC/30CC/55CC/100CC/200CC/300CC/500CC

Minimum discharge : 0.01ml

The gluefrequency : 5 times/SEC.

AxialdynamicspeedX/Y/Z(mm) : 0-600mm/sec

Contact Now

High quality Rotary automatic dispensing machine with two-dimensional for SMT production line

Specification Sheets



Model



TZ-DJ331R



TZ-DJ5331R



Trip(mm)



300/300/100/360°



500/300/300/100/360°

programmatically



Import teaching programming or graphics



Can movethegraphtrack



Point,line,arc,circle,curve,multiple lines,spiral,ellipse



Dispensing head



Plastic needle /TT needle



Dispensing cylinder



3CC/5CC/10CC/30CC/55CC/100CC/200CC/300CC/500CC



Minimum discharge



0.01ml



The gluefrequency



5 times/SEC.



load



Y/Xaxle load



10kg



Zaxle load



5kg

AxialdynamicspeedX/Y/Z(mm)



0-600mm/sec



Resolvingpower



0.01mm/Axis



Repeatability

positioning accuracy(mm)



Screw drive



0.01-0.02



Synchronous belt drive





0.02-0.04



Program record mode



At least100,5000 pointseach



Displaymode



LCD Teaching box



Motorsystem



Japan precision microsteppingmotor







Drivemode







Taiwan uppersilver linear guide rail



Wire rod



Taiwan silver bar





italy Italy Lartey synchronousbelt



XYZ axis synchronousbeltforstandardconfiguration,Zaxis screw rodis optionalXYZ axis screw rodfor customization



Motion filling function



3 axis(3 Three dimensional space,any route can)



Input power



Full voltageAC110V-220V



Externalcontrol interface

RS232



Motorcontrol shaft number







55



Axis range(mm)



X



300



500



Y





300



Y



300



300



Z



100



100



R



360°



360°



Outlinesize(mm)



540*580*650



730/589/860



Bodyweight(kg)



48KG





78KG



High Quality Rotary Automatic Dispensing Machine With Two-Dimensional For SMT Production Line

Distinguishing Feature

  • The degree of rotation is large and the applicability is wide.
  • It is independent of the mold.It is an aluminum profile casting structure with beautiful appearance.
  • It has a hand-held teaching programmer,which is fast and easy to program.
  • Its glue speed and glue amount can be set separately.
  • It is controlled by a high precision stepping motor,and the trail is accurate.
  • It can finish any shape point glue,such as space point,line,arc,etc.
  • It contains a variety of glue needles,syringes,glue valves and controllers to meet different requirements.
