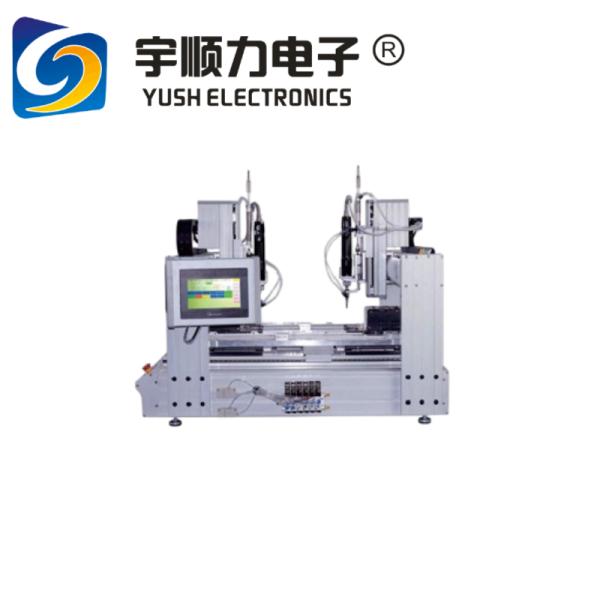

Full Automatic Adsorption Type Screw Locking Machine For SMT Production Line

Brand Name : YUSH

Model Number : Adsorption type automatic locking screw machine

Certification : CE, RUV Rheinland (China), GMC(GlobalMarket),ISO9001-2000

Place of Origin : Jiangsu

MOQ : 1 set

Price : USD 7000~12000

Payment Terms : T/T ,Paypal ,West Union ,L/C ,D/P .

Supply Ability : 100 sets/ month

Delivery Time : 3 days to 7days

Packaging Details : Plywooden case

Model : Adsorption type automatic locking screw machine

Electric Group : Adsorption type automatic locking screw machine

Control system : pressional screw machine system

Mechanical platform travel range X/Y/Z(mm) : 500/300/300/100 (customizable)

Maximum load : 10kg

Moving speed(mm/sec) : 0-800

Lock one screw time : 0.6-1.5seconds

Repeatability accuracy : ±0.02mm/Axis

Contact Now

Full Automatic Adsorption Type Automatic Screw Locking Machine For SMT Production Line

Technical parameters



Model



Adsorption type automatic locking screw machine



Electric Group



Imported HIOS electric batch



Feeder



Independent development



Control system



pressional screw machine system



Mechanical platform travel range X/Y/Z(mm)



500/300/300/100

(customizable)

Maximum load



10kg



Moving speed(mm/sec)



0-800



Lock one screw time



0.6-1.5秒



Repeatability accuracy



±0.02mm/Axis



Program record mode



The 999 group



Display mode



7 inch color



Motor system



Research and control closed-loop servo motor



Guide



Taiwan upper Silver





sensor

omron



Belt



Italy Italy Lartey synchronous belt



Drive mode



Timing belt/screw rod



Driver



Lei sai



Alarm function



Floating lock,lock strip,leakage



Applicable screw



M0.9—M6.0



input power



Full voltage AC110V~220V



External control interface



RS232



Full Automatic Adsorption Type Screw Locking Machine For SMT Production Line

Main configuration

●DoubleY-axis working platform,aluminum profile module structure
● Manual type teaching programmable controller is simple and easy to use
●Japan imported HIOS electric screwdriver for accurate lock payment
● Z axis screw,Taiwan silver guide rail
●Closed loop servo motor

Distinguishing Feature

● Touch display teaching input is programmable
●DoubeY-axis platform,left and right locking screws are alternated
●Automatic screw absorption,automatic screw tightening
●Continuous feeding,providing the screw count function and anti-missing function
●Constant torque,screw loose thread and float lock, alarm function
●Three-axis linkage,high lock efficiency
●Double-station,double-electric screwdriver cycle lock
●Double-electric screwdriver can lock different
screws separately
