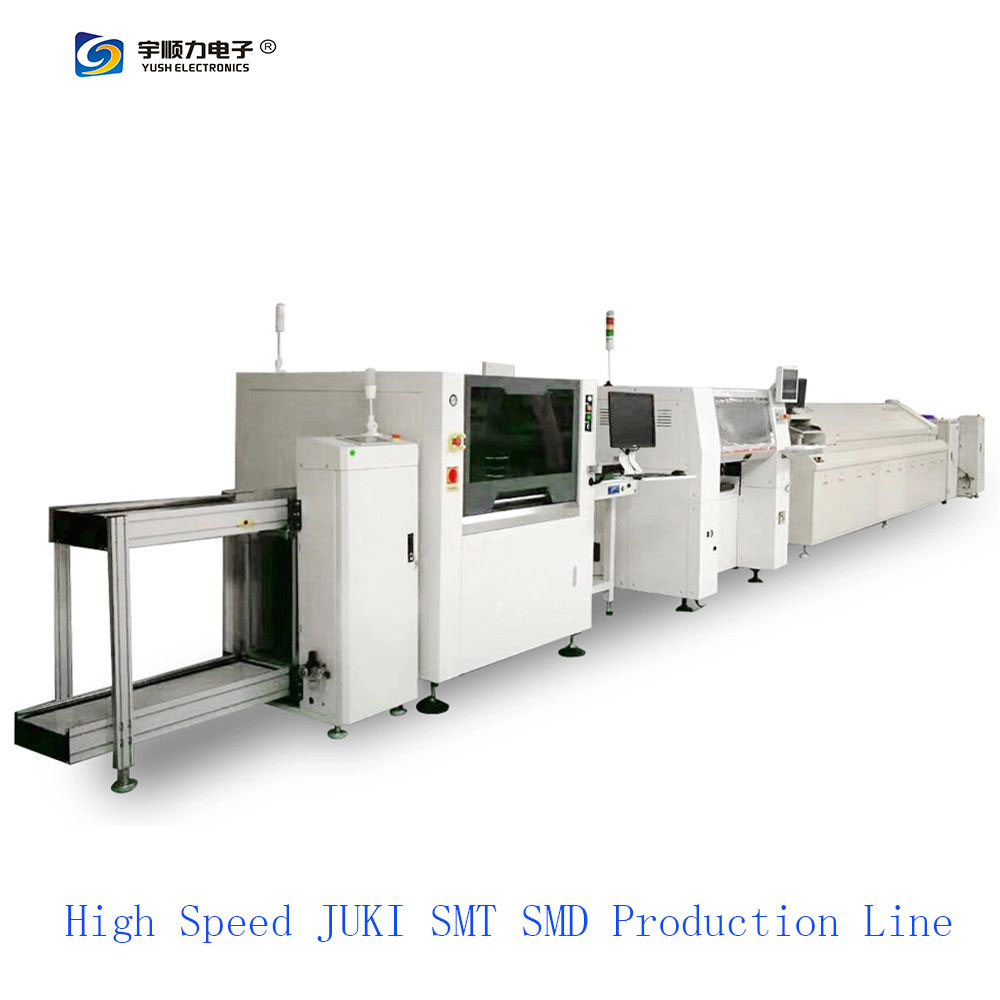

High Professional Customization / Multi Function SMT Line

Brand Name : YUSH

Model Number : YSL-P6

Certification : CE, RUV Rheinland (China), GMC(GlobalMarket),ISO9001-2000

Place of Origin : Jiangsu

MOQ : 1set

Price : USD10000

Payment Terms : L/C, D/P, T/T

Supply Ability : 100sets

Delivery Time : 5-7days

Packaging Details : wooden case

Dimension : 1050x750x1650 mm

Power supply : 1 -PH, 220VAC 50/60HZ

PCB Size : 600 x 350 mm

Air pressure : 4.5-6 kg/cm

Weight : 300 Kg

Contact Now

FEATURE:

Using linear guide-ways, matching motor drive speed, ensure the printing stability and precision.

Blade pressure and printing speed is asjustable, precision pressure gauge, speed controller display.

Modular universal bench, thimble random placement, easy conversion.

With alignment device for PCB board and frame.




Model P3 P6 P12
Accuracy +/- 0.05mm +/- 0.05mm +/- 0.05mm
PCB Size 300 x 350 mm 600 x 350 mm 1200 x 350 mm
Platform size 300 x 350 mm 700 x 400 mm 1350 x 400 mm
Stencil Size(mm) 370*470,550*650 370*470,550*650 370*470,550*650,1500*650
PCB Thickness 0.2 - 6 mm 0.2 - 6 mm 0.2 - 6 mm
Stencil Positioning Manual Manual Manual
Cycle Time < 10 Sec. < 10 Sec. < 12 Sec.
Power Consumption 200 W 200 W 200 W
Power Supply 1 -PH, 220VAC 50/60HZ 1 -PH, 220VAC 50/60HZ 1 -PH, 220VAC 50/60HZ
Air Pressure 4.5-6 kg/cm 4.5-6 kg/cm 4.5-6 kg/cm
Squeegee Speed 0-1500mm/sec 0-1500mm/sec 0-1500mm/sec
Dimension 850x750x1650 mm 1050x750x1650 mm 1660x750x1650 mm
Weight 280 Kg 300 Kg 356 Kg
Squeegee Length 250mm 250mm 250mm
Platform Height 950mm 950mm 950mm
Option: Special size can be customized
