2.2kw Fully Automatic Pcb Solder Paste Printer High Precisely

YUSH Electronic Technology Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

2.2kw Fully Automatic Pcb Solder Paste Printer High Precisely

Brand Name : YUSH

Model Number : YSL-E

Certification : CE, RUV Rheinland (China), GMC(GlobalMarket),ISO9001-2000

Place of Origin : Jiangsu

MOQ : 1set

Price : USD12000

Payment Terms : L/C, D/P, T/T

Supply Ability : 100sets

Delivery Time : 5-7days

Packaging Details : wooden case

Power Source : AC:220±10%,50/60Hz 2.2KW

Air Pressure : 4~6Kgf/cm²

Air Consumption : 5L/min

Operating Temperature : -20℃~+45℃

Working environment humidity : 30%~60%

Machine dimension(without Tower light) : 1500(H)mm

Machine Length : 1258(L)mm

Machine Width : 1425(W)mm

Machine Weight : Approx:1100Kg

Equipment load bearing requirements : 650Kg/m

Contact Now

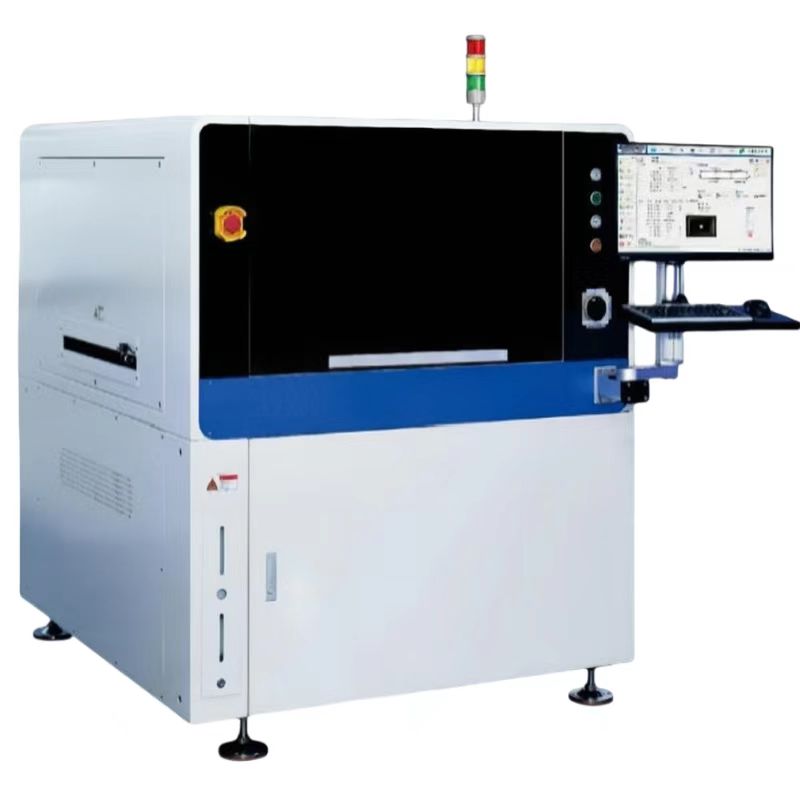

Fully Automatic pcb solder paste printer



Machine Performance
Repeat Position Accuracy ±12.5um@6o CPK≥2.0
PrintAccuracy ±22um@6o CPK≥2.0
NCP-CT(Excluding cleaning and printing) <7.5 sec
HCP-CT(Including cleaning and printing) 19s/pCs
Process CT 5min
Transfer CT 3min
Substrate processing parameter
 Maximum board size 510*510mm
 Minimum board size 50*50mm
 Board thickness 0.4~6mm
 Camera Mechanical range 510*510mm
 Maximum board weight 5kg
 Board edge clearance 2.5mm
 Board height 23mm
 Transport speed 900±40mm
 (Max)Transport speed Segmented control,1500mm/s(Max)
 Transport direction  One stage



 Transmission direction

 Left to right
 Right to Left
In and out the same



 Support System

65mm)Magnetic Pin
(65mm) Support Block
 Manual Up-down table



Board clamp

 Manual retractable upper tablet
 Side damping
 Adsorption function
Printing Parameters
Print Speed 10~200mm/sec
Print Pressure 0.5~20Kg
Print Mode One/Twice
 Queegee Type Rubber/SqueegeeBlade (angle 45/55/60)
 Snap-off 0~20mm
 Snap-Speed 0~20mm/sec
 The template frame size 470*370mm~737*737mm
Steel mesh positioning method Automatic Y-direction positioning (compatible with manual compensation adjustment)
Cleaning Parameters
 Cleaning System  Dry,Wet Vacuum three modes
 High speed cleaning  weave cleaning
Cleaning system  Side spray type
 Cleaning stroke Automatic generation
 Cleaning position  Postcleaning
 Cleaning Speed 10-200mm/sec
 Cleaning fluidconsumption Auto &Manually adjustable
 Cleaningpaper consumption Auto &Manually adjustable
Vision Parameters
 CCD FOV 10*8mm
 Camera type 130 Thousand CCD Digital camera
 Camera System Lock up/down optics structure
Camera Cycle time 300 ms



 Fiducial mark types

Standard Fiducial Mark Shape
round,square,diamond,cross
Pad and profile
 Mark size 0.3-6mm
 Mark number Max:4pcs
 Stay away number Max:1pcs
