Calibration Blade manual PCB Depanelizer with Moderate Volume
PCB Depanelizer machine Specifications
Precision pcb depaneling machine
1. PCB Protection
2. Calibration Blade Setting
3. All Speed Control By Human
4. More Accurating
PCB Depanelizer machine Specification:
| Model | Precision pcb depaneling machine YSV-1M |
| PCB Cutting Length (mm) | 460/700/1000/1500 |
| Cutting Speed (mm/s) | manual |
| Cutting Thickness (mm) | 0.6~3.5 |
| Size (mm) | 400*780*480 |
| Weight (Kg) | 55 |
| Guarantee | 1 Year |
| Delivery | 1 Day |
| Ability | 1000 Sets |
| Min. Order | 1 Set |
PCB Depanelizer machine Detailed Product Description:
1. For electronics, cell phones, computers, PCB, FPC (flexible printed circuit board),LED.
2. Mold make of SKH-11 Steel, Blade is SKH-9(From Japan), rigorous Job. Dedicated
to high strength cutting, and excellent toughness, able to cut metal board .
PCB Depanelizer machine Technical characteristics:
1. Structural precision, the load evenly, to eliminate internal stress
2. Safe, easy to operate
3. For electronics, cell phones, computers, PCB, FPC (flexible printed circuit board)
PCB Depanelizer machine Feature:

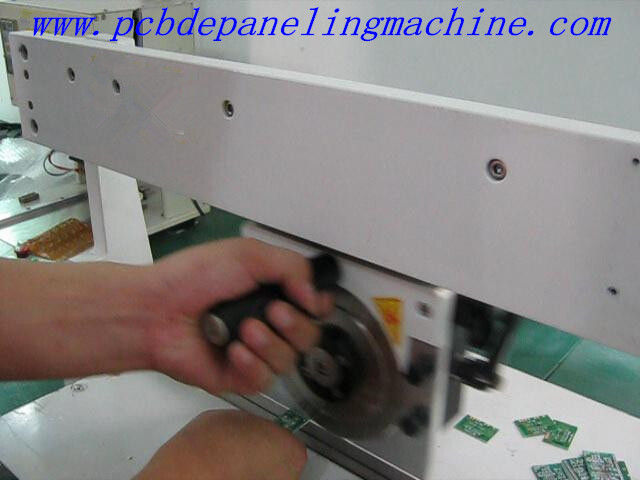

1. Round knife, manually cutting against lower linear knife, for reduced stress .
2. Separate pre-scored PCB assembly without stress on either PCB or component .
3. One touch programming of cut length with digital display .
4. Separating speed is adjusted by a rotary knob .
5. Handle Intermittent scoring or cut-outs .
6. Board with projected component can be cut precisely .
7. Large stainless steel platform on both side of cutting blade prevents board wobble and table height and angle are adjustable .
8. Optional PCB conveyor belt to remove finished board .
9. Clearance between circular and linear blades are adjustable to fit different groove depth and compensates for blade wear out .
