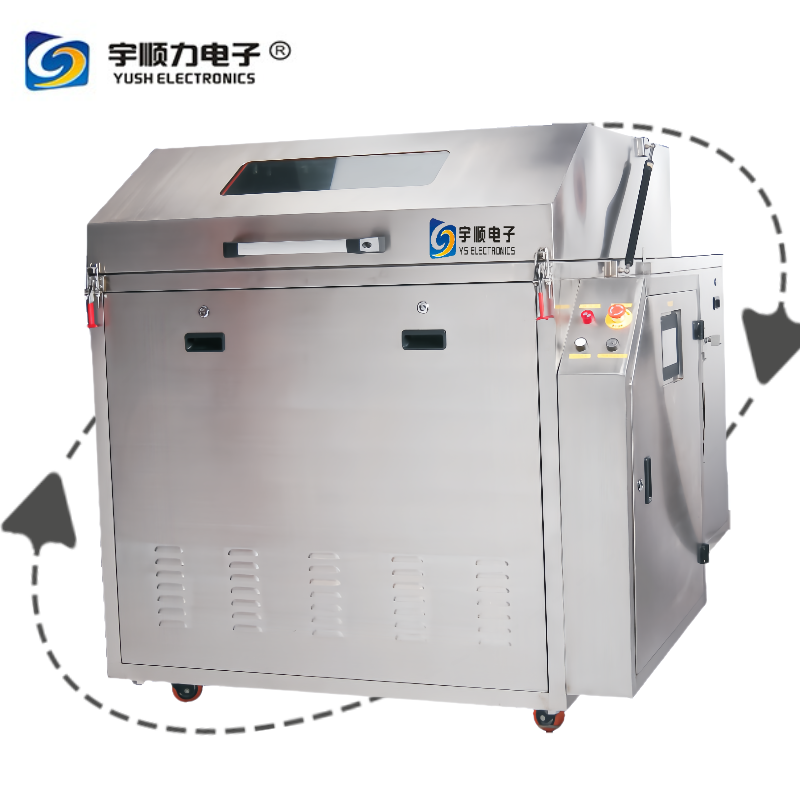

Fixture Cleaning Machine One-Button Simple Operation PCB Cleaning Machine Weight 500kg
YS-5200 Features:
1.All SUS304 stainless steel structure , welded by the whole machine , strong and durable , resistant to acid and alkali corrosion , beautiful appearance.
2.1 meter diameter cleaning basket , place multiple pieces of jig at a time to achieve batch cleaning.
3.Above , below , front spray bar , rotating cleaning basket , all - round coverage , no dead angle for cleaning.
4.The cleaning pressure reaches 6kg/cm2, and the cleaning solution completely penetrates the bottom of the jig.
5.PLC program control , touch screen operation , cleaning parameters can be set and modified as needed.
6.One - button simple operation , high - pressure cleaning + high - pressure rinsing + hot air drying process is completed automatically at a time.
7.Cleaning liquid heating and heat preservation function.
8.The cleaning liquid and rinsing liquid are circulated and filtered in the machine , saving the solution and reducing the cost of use.
9.Standard equipped with automatic rinsing liquid function.
10.After cleaning , the surface of the jig is clean , dry and ready to use.
Specification Parameter
| | YS-5200 |
| Cleaning basket size | φ1000mmxH200mm,Special specifications for customization |
| sprinkler system | Upper / lower / front, 720 all-round coverage |
| Filtering system | mm filter / 50um filter / 20um filter |
| Cleaning fluid tank capacity | 80L |
| Rinse tank capacity | 80L |
| Cleaning spray pressure | 5~6 kg/cm2 |
| Cleaning time | 5~15 Minutes |
| Rinse time | 1~3 Minutes |
| Drying time | 10~20 Minutes |
| Cleaning fluid heating temperature | Room temperature ~80℃ |
| Hot air drying temperature | Room temperature of ~90℃ households |
| Cleaning pump power | 2.2KW |
| Liquid heating power | 9Kw |
| Hot air heating power | 9KW |
| Blower power | 4.0KW, |
| Air pressure | 0.5～0.7MPa |
| power | 3 P,AC380V,50/60HZ,33KW |
| Machine size | L1380xW2100xH1400(mm) |
| Machine weight | 500KG |
