Pneumatic Control Intelligent PCB Nibbler Cutting Machine

Name: Pneumatic Control Intelligent PCB Nibbler Cutting Machine
Brand: YUSH
Price: 1 USD

Brand Name : YUSH

Model Number : YSV-LT

Certification : CE,ROHS, FCC

Place of Origin : Jiangsu,China

MOQ : 1set

Price : negotiation

Payment Terms : FOB, L/C, D/A, D/P

Supply Ability : 1000 set /week

Delivery Time : 5-10 days

Packaging Details : Plywooden case

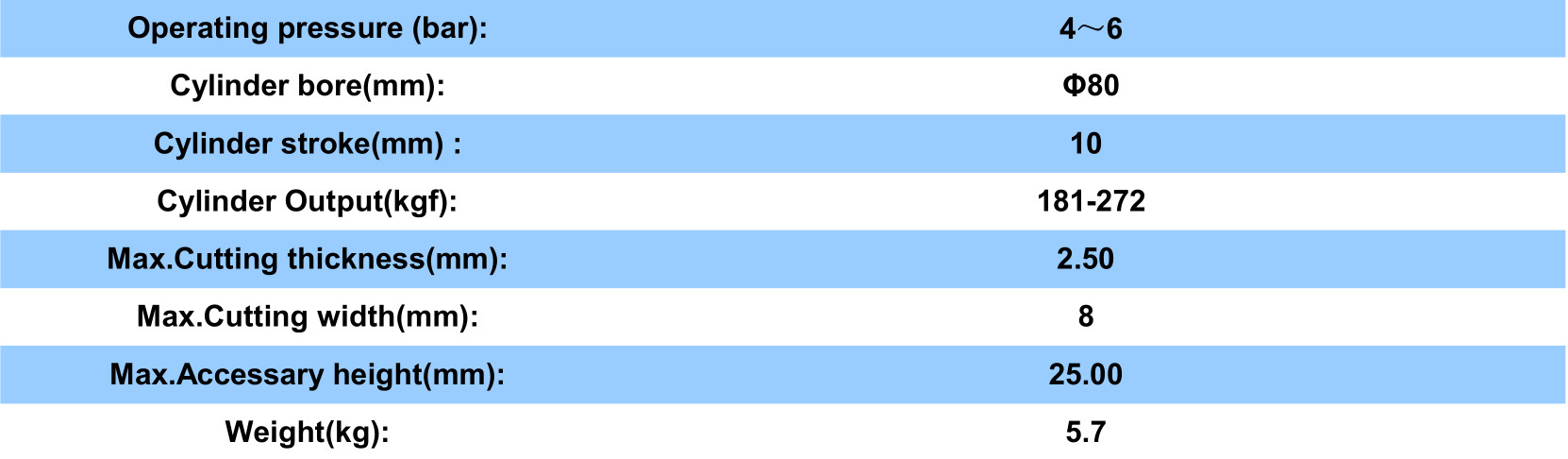

Max.Cutting thickness(mm) : 2.50

Working dry air pressure : 0.50-0.70 Mpa

Cylinder bore(mm) : Φ80

Action stroke times : 12 times / min

Max.Cutting width(mm) : 8

Max.Accessary height(mm) : 25.00

Weight(kg) : 5.7

Contact Now

Professional Single PCBA / PCB Nibbler With Pneumatic Control

Specifications

Pneumatic Control Intelligent PCB Nibbler Cutting Machine

Printed Circuit Board Nibbler Machine Features:

1. Upper blade and lower blade are made of special material and durable.
2. Minimize the shearing stress to avoid micro-cracks of the soldering joint.
3. It is applicable for complex structure of double-panel, with different thinkness of cutter can fit to different width of V-groove.
4. Easy and convinence to change the cutter .
5. Reliable operate and high efficinence for Pneumatically driven ,footswitch control.
6. Supporting PCB with four supporting pin to keep PCB lever to improve
the quality of cutting ,otherwise, easy to move the supporting pin .
7. The thickness and the height for cutter can be custome made .
8. Easy to fetch and give for waste box.

Pneumatic Control Intelligent PCB Nibbler Cutting Machine

If you interest in our product,please contact us!
